Aerospace and defense manufacturing demands materials that perform under real pressure. A wrong tolerance, a wrong alloy, and components fail. We’ve supplied precision ground bar stock to manufacturers since 1970, and we know what your specs require before your order even starts.
At Precision Ground Bars in Chicago, Illinois, we stock aircraft alloy steels, titanium, Inconel, aluminum, and high-strength stainless grades. We grind every bar to the dimensional condition your application needs, and our team is ready to work through your specification with you.
What Aerospace and Defense Manufacturers Need From a Trusted Ground Bar Supplier
Aerospace procurement isn’t just about finding a grade on a shelf. It’s about getting that grade ground, straightened, and cut to a tolerance that actually fits your assembly. We combine a deep material inventory with full precision grinding services so you get both from one source.
Every program is different, but the core requirements stay consistent. High strength, tight tolerance, and corrosion resistance across extreme conditions. Our inventory and services are built around exactly those demands, and we’ve been refining both since 1970.
Aircraft Alloy Steels, Titanium, and Aluminum for Structural Applications

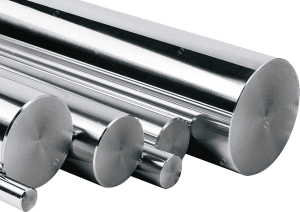

Titanium is stronger and lighter than steel, with a melting point above 1,650°C, which classifies it as a refractory metal. It holds strength at extreme temperatures and carries natural corrosion resistance. We carry titanium round bars and cut them to custom sizes for specific aerospace and defense applications.
Aluminum accounts for approximately 75% of aircraft structures. It accepts coatings and paints while retaining corrosion resistance and high strength. Our aluminum inventory covers grades 2011 T3, 2024, 2024 T351, 6061 T6511, and 7075, all available in custom cut sizes.
High-Strength Stainless and Alloy Steel Grades for Demanding Programs
Our alloy steel inventory includes grades 4130, 4140/4142, 41L42, 8620, and 86L20. Chromium content in these grades ensures excellent hardness penetration. Molybdenum imparts high strength and uniform hardness. These grades resist creep at temperatures as high as 1,000°F and offer good toughness and wear resistance.
Our stainless inventory runs from 303 and 304/304L through 17-4 PH, A286, Nitronic-60, and Duplex. Age-hardenable grades are sought for aerospace and military work because they combine tensile strength, yield strength, and excellent stress corrosion cracking resistance in a single material. All grades are available in round, square, and hexagon bar shapes.
Inconel Bar Stock for High-Temperature Aerospace Components
Inconel forms a stable, thick passivating oxide layer when heated, protecting the alloy surface from further attack. That protection is a property of the material, not a coating. High-temperature strength develops through precipitation hardening or solid solution strengthening. We stock Inconel 625 and Inconel X750 for gas turbine blades, combustors, turbocharger rotors, pump motor shafts, and high-temperature fasteners.
Inconel work-hardens rapidly after the first machining pass. Each subsequent pass cuts against a harder surface, which increases tooling wear and cycle time. Planning to minimize required passes before machining starts protects both your tooling and your timeline.
Precision Grinding Services That Bring Your Bar to Spec
Our centerless grinding service delivers high tolerance, precision roundness, and a perfect surface finish across all aerospace grades we stock. For pump shaft quality bar stock under 1 inch OD, we hold diameter tolerance to +0 / -0.002 inch. Tensile strength meets 100 KSI minimum, and yield strength meets 75 KSI minimum. Available PSQ grades are 316, 410, 420, and 17-4 PH.
We also offer TGP, turned, ground, and polished, in cold-rolled and hot-rolled options. TGP stock delivers the highest level of dimensional straightness and accuracy for high-speed motor shafts, pump shafts, crankshafts, camshafts, and axle shafts. OD grinding, precision straightening, bar stock cutting, and custom packaging complete the service lineup.
Get Pricing on Your Aerospace Bar Stock Specification Today
Call us toll-free at (800) 818-0822 or locally at (708) 880-7277, Monday through Friday, 8 AM to 5 PM. Our team works through your grade, diameter, length, and tolerance requirements and returns up to 3 prices so you can compare options before committing.
Submit your full specification online at precisiongroundbars.com/submit-a-quote. Include grade, diameter, length, tolerance, and quantity. We’ve been doing this since 1970, and we’re comfortable working through tight aerospace specifications with engineers and procurement teams alike.
FAQs
Which aerospace material grades do you stock?
We carry titanium, aluminum grades 2011 T3 through 7075, alloy steels 4130 through 86L20, Inconel 625, Inconel X750, Monel 400, and stainless grades including 17-4 PH, A286, and Nitronic-60.
What tolerances do you hold on pump shaft quality bar stock?
Under 1 inch OD, we hold +0 / -0.002 inch diameter tolerance. Tensile strength is 100 KSI minimum, and yield strength is 75 KSI minimum.
What finishing services are available beyond centerless grinding?
We offer TGP processing, OD grinding, bar grinding and polishing, precision straightening, bar stock cutting, chrome plating, precision heat treating, and custom packaging.
How do I request pricing?
Submit your specification at precisiongroundbars.com/submit-a-quote or call (800) 818-0822 Monday through Friday, 8 AM to 5 PM.
